| GM130 Ultrasonic Metals Thickness Gauge Product description |
GM130 pipe thickness gauge
The GM130 pipe thickness gauge is an intelligent handheld product that adopts the principle of ultrasonic thickness measurement and is controlled by a microprocessor to provide fast and accurate thickness measurement for most industrial materials. It is widely used in the precision measurement of various hardware/components in the industrial field; one of its important applications is to monitor the thickness reduction level of various pressure vessels during operation. It is widely used in manufacturing, metal processing, commodity inspection and other fields.
| GM130 Ultrasonic Metals Thickness Gauge Features |
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3. Preset 12 sound velocities for different material
4. 12 thickness measurement data store and recall
5. Thickness alarm setup
6. Backlight display
7. Low battery indication
8. Metric/Imperial selection
9. Auto power off
| GM130 Ultrasonic Metals Thickness Gauge Specification |
. Measuring range: 1.00 to 300.0mm(steel)
. Accuracy: (1%H+0.1mm)
H denotes the measured thickness
. Working frequency: 5MHz
. Resolution:0.01mm(1.00 to 99.99mm)
0.1mm(100 to 300mm)
. Minimum limit for tube measuring steel :
15*2.0mm( 6mm transducer)
20*3.0mm( 10mm transducer)
. Sound velocity range:1000 to 9999m/s
Thickness 20mm, accuracy of velocity: 1mm/H 100%
Thickness 20mm , accuracy of velocity: 5%
. Operating environment :
Operation temperature: 0 to 40
Temperature of workpiece: < 6 0
Relative Humidity: <90%
Do not apply in violent vibration / erosive material
Avoid impact and humidity
. Power supply:1.5V AAA * 3 PCS
. Operation current: 35mA (with back light on)
. Size: 72*29*146mm
. Weight:223g

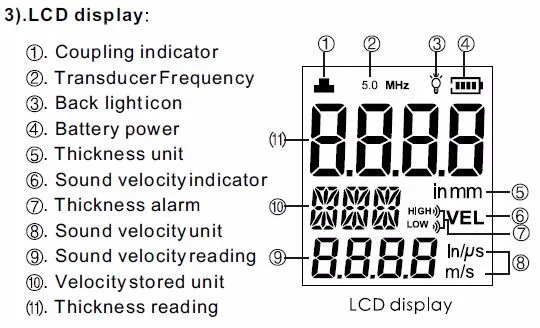

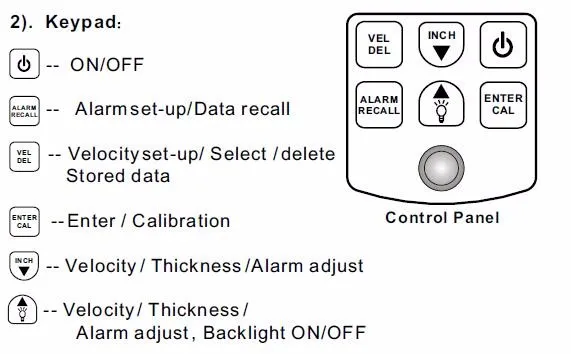

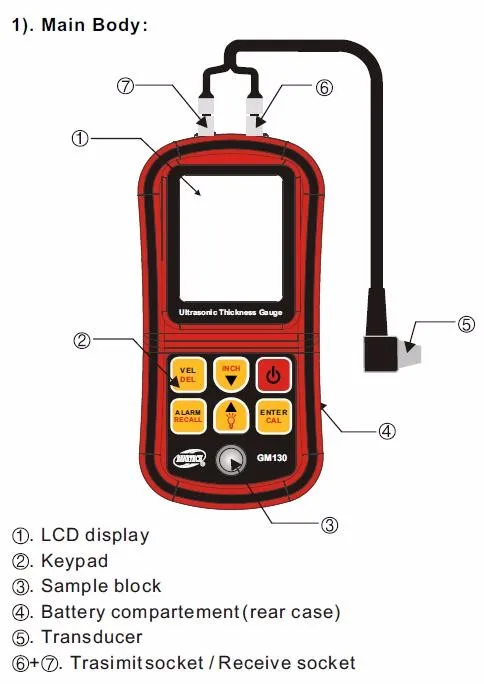

| GM130 Ultrasonic Metals Thickness Gauge Diagram of The Unit |
Handheld GM100 Ultrasonic Thickness Gauge
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Delivery
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
